EST 757-7A-SS70
EST_757-7A-SS70_1 EST_757-7A-SS70_2 EST_757-7A-SS70_3
EST_757-7A-SS70_4 EST_757-7A-SS70_Label

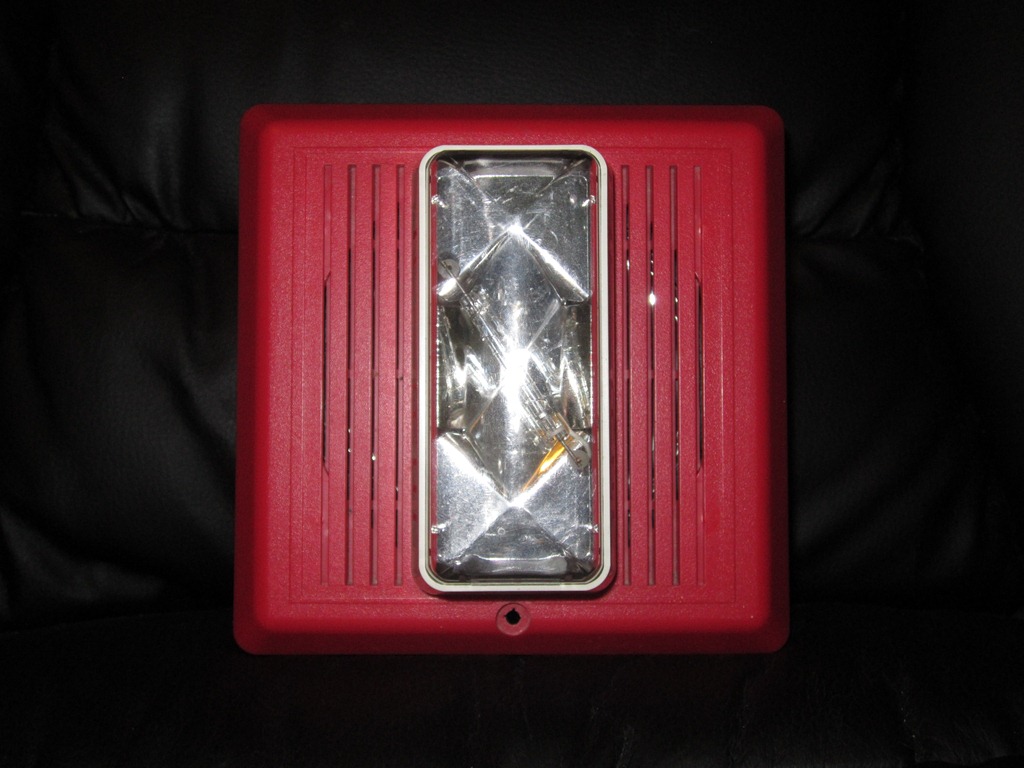

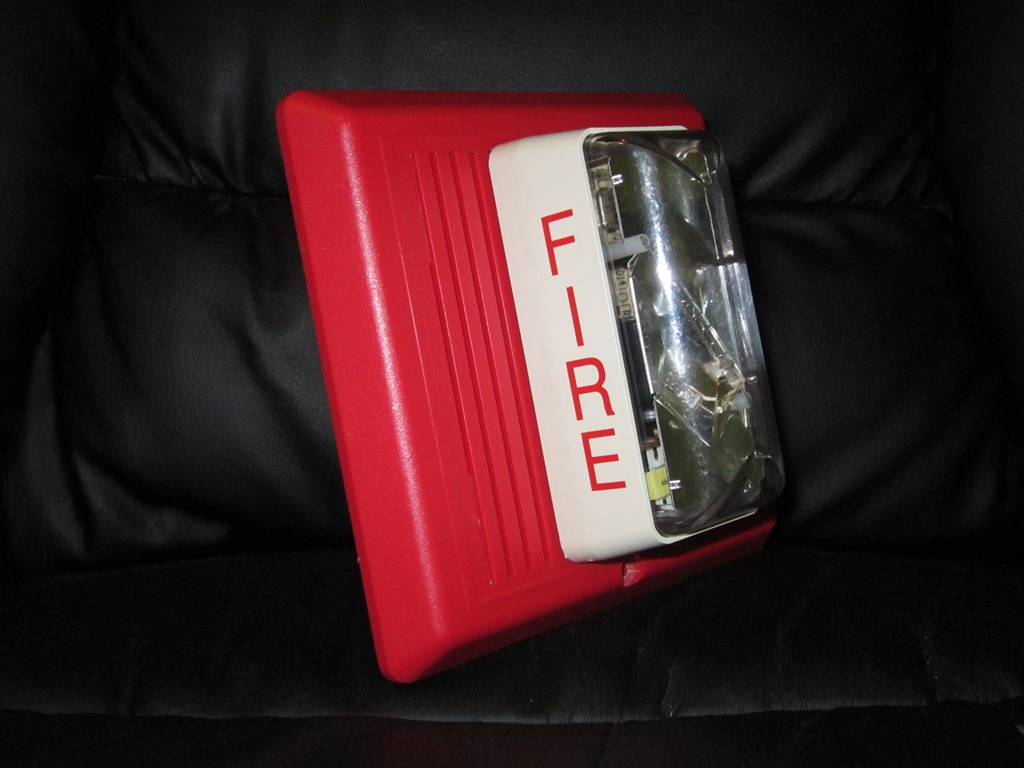

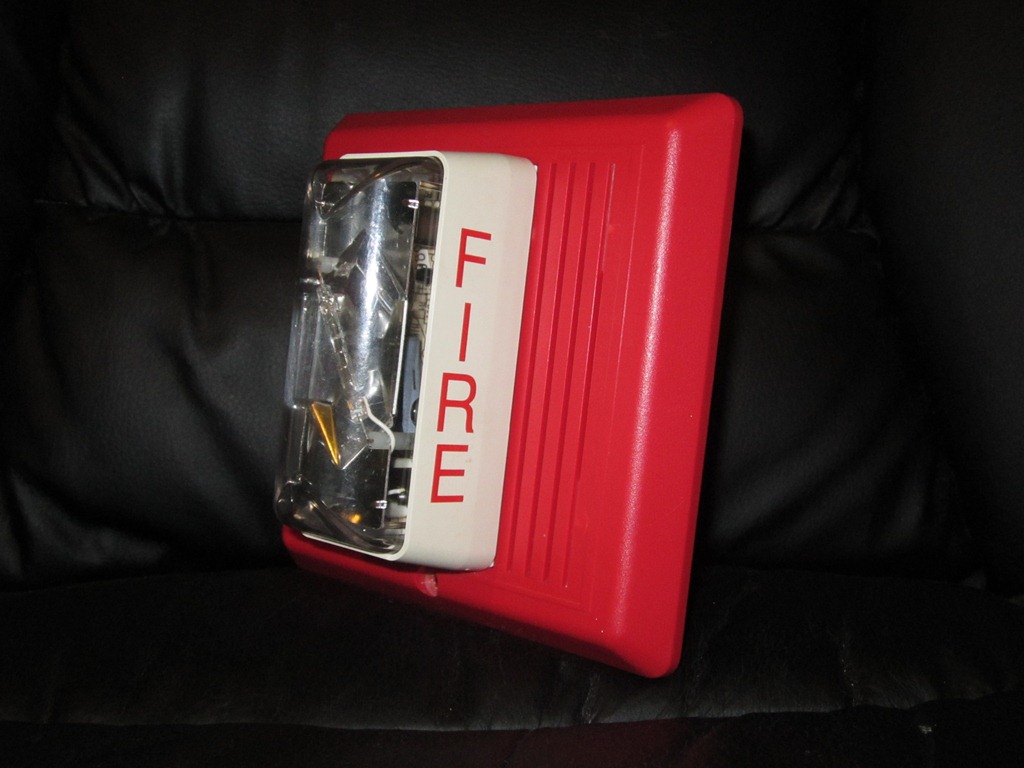

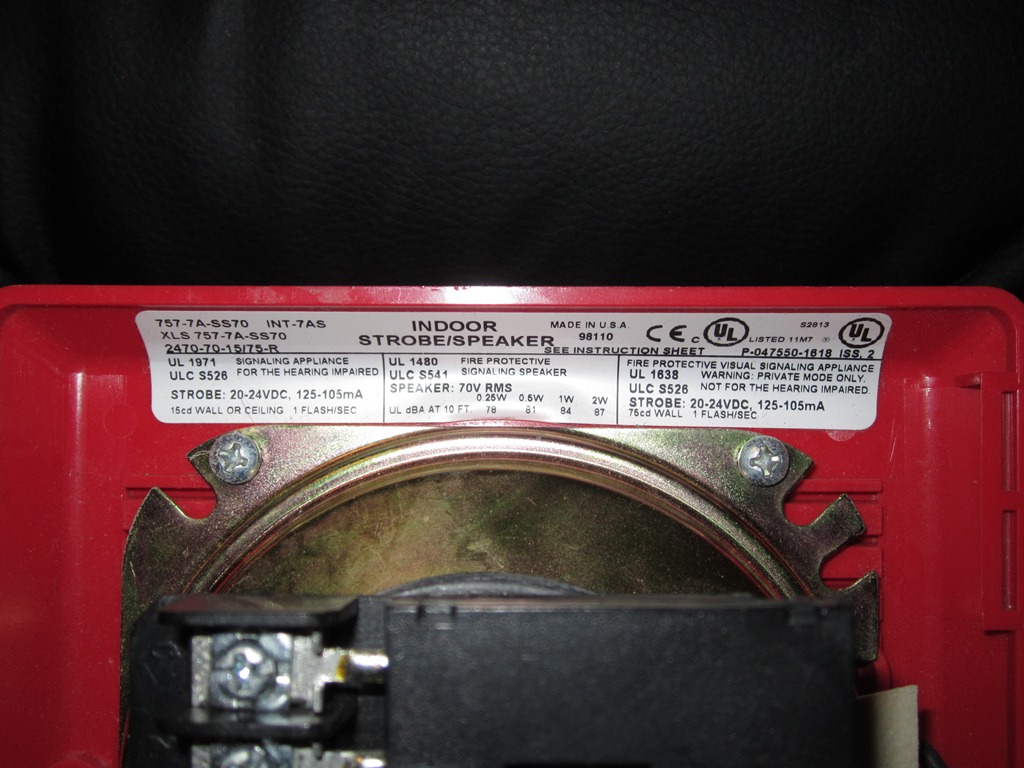

Model: 757-7A-SS70 (speaker/strobe)

Operating Voltage: Speaker: 70 VRMS
                               Strobe: 20-24 VDC

Strobe Intensity: 15/75 cd

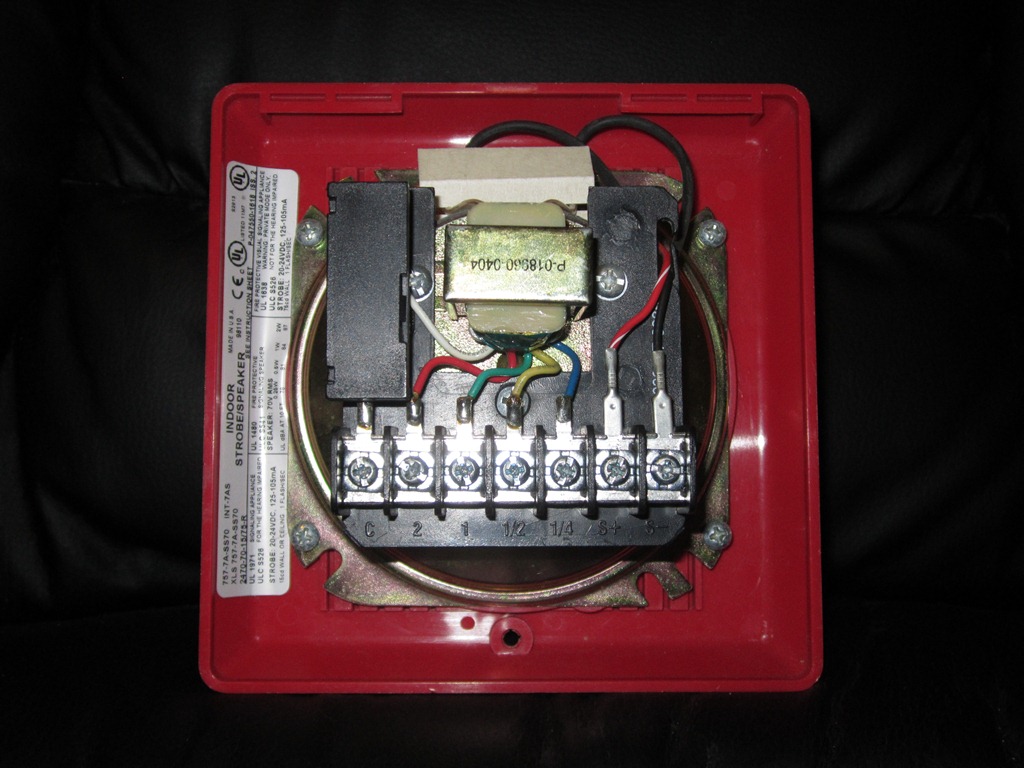

Notes: Speaker can be wired to 1/4, 1/2, 1 or 2 watts. The higher the watt setting, the louder the volume: 1/4W is 78db, 1/2W is 81db, 1W is 84db, and 2W is 87db.

Quantity in collection: 1

Media: Click here to see it in action!
