Simplex 4903-9168
Simplex_4903-9168_1 Simplex_4903-9168_2 Simplex_4903-9168_3
Simplex_4903-9168_4 Simplex_4903-9168_Label

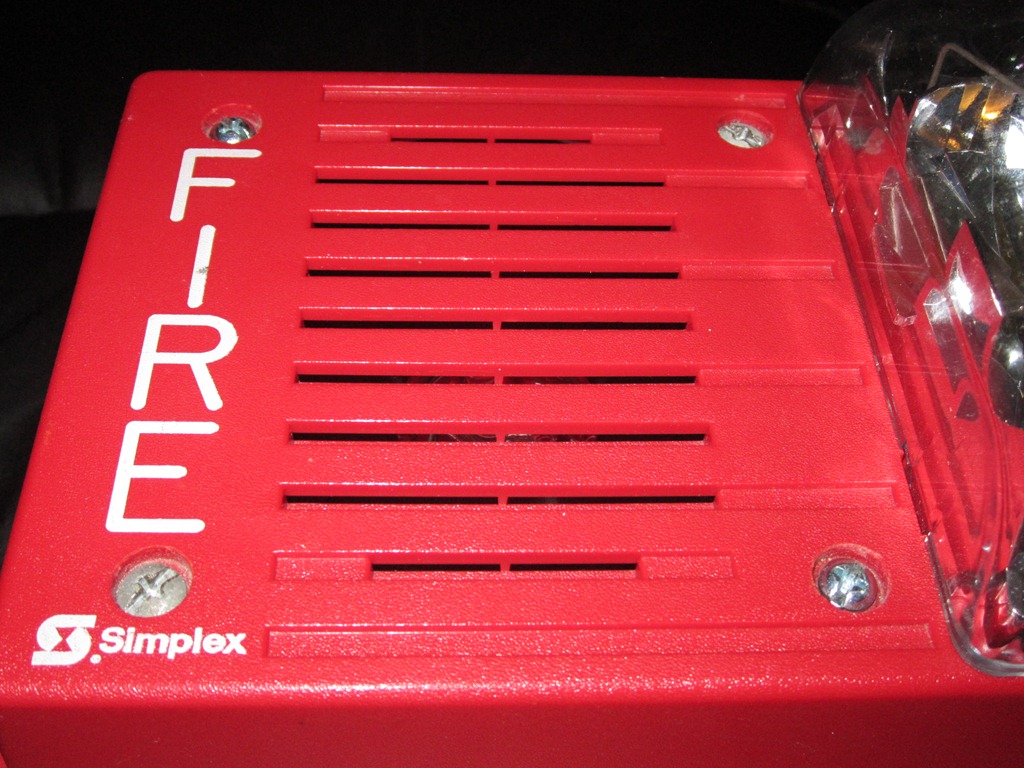

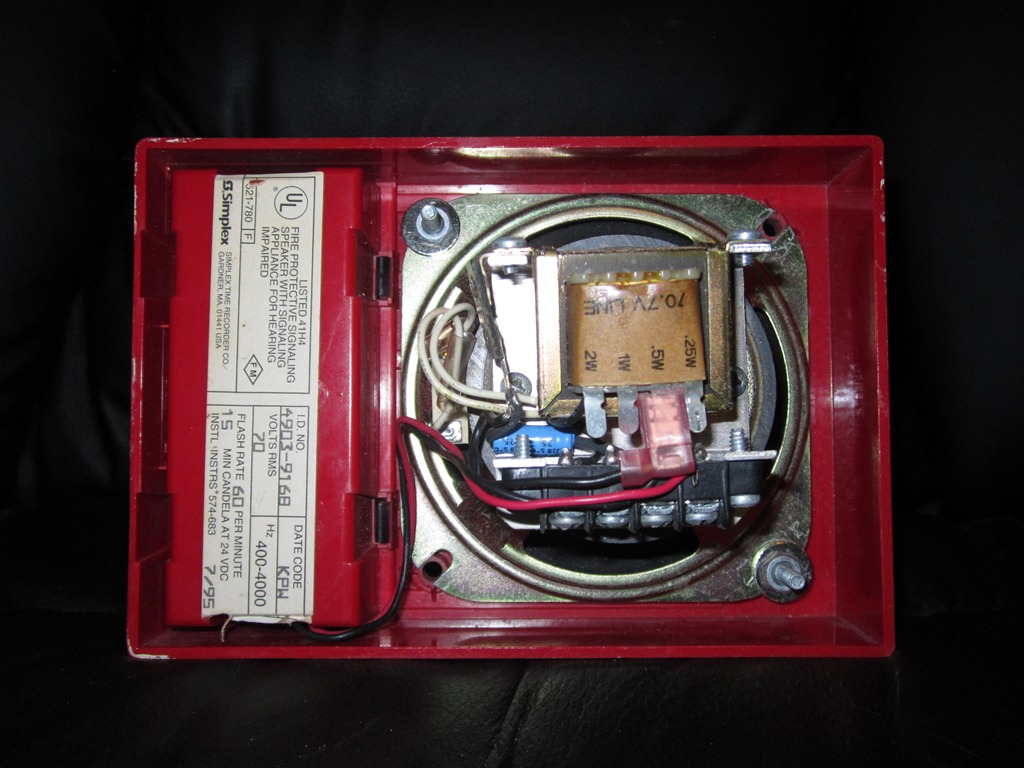

Model: 4903-9168 (speaker/strobe)

Operating Voltage: Speaker: 70 VRMS
                               Strobe: 24 VDC

Strobe Intensity: 15 cd

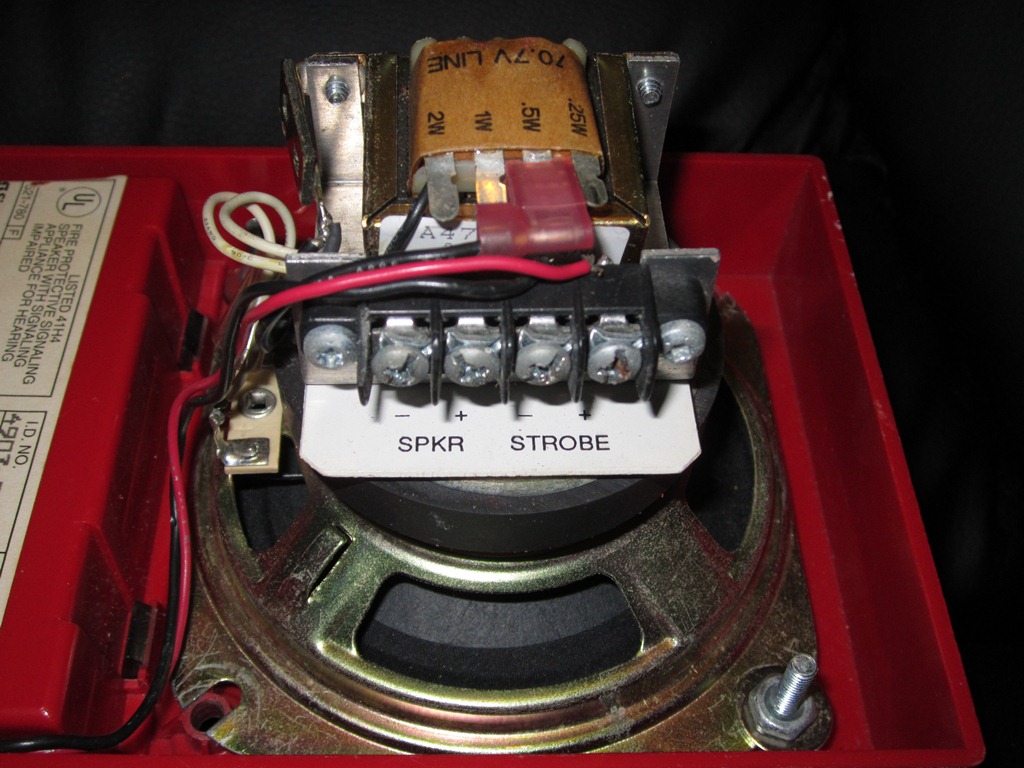

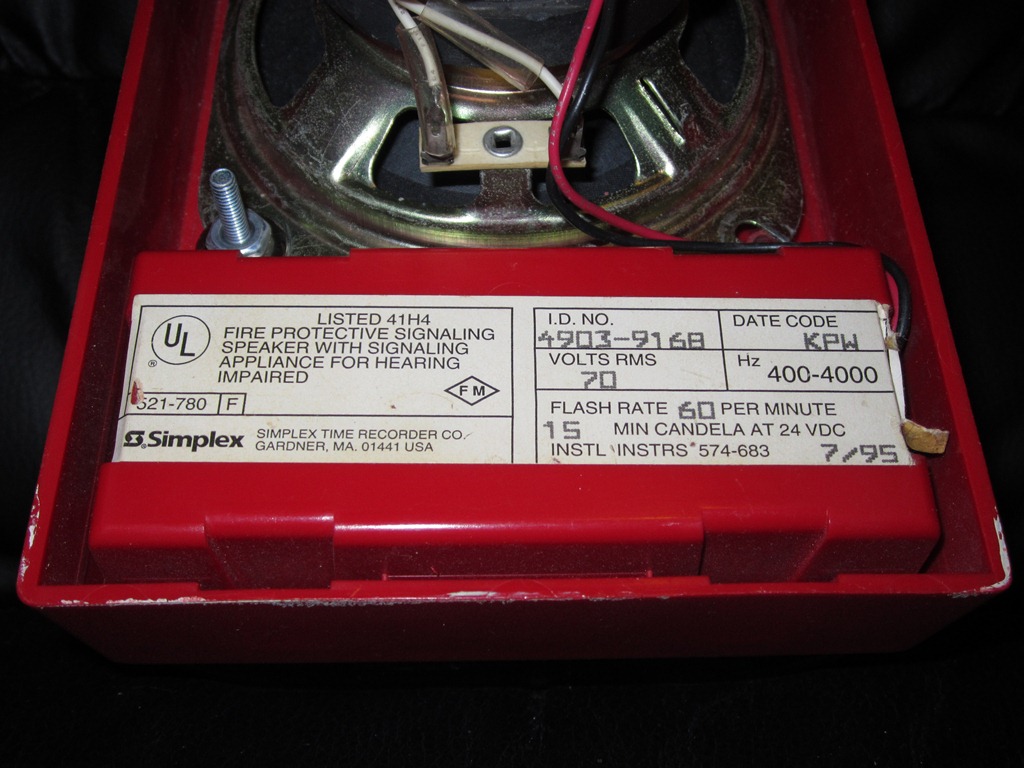

Notes: Label notes a strobe flash rate of 1 Hz (one flash per second), but when the proper voltage is applied, the flash rate is actually a bit faster (approx 1.5hz). Speaker can be tapped to 1/4, 1/2, 1 or 2 watts; the higher the watt setting, the louder the volume: 1/4W is 75db, 1/2W is 78db, 1W is 81db, and 2W is 84db.

Quantity in collection: 1

Media: Video 1, Video 2 (same alarm pattern as video 1), Video 3, Video 4.
