Simplex 4903-9356
Simplex_4903-9356_1 Simplex_4903-9356_2 Simplex_4903-9356_3
Simplex_4903-9356_4 Simplex_4903-9356_5 Simplex_4903-9356_6 Simplex_4903-9356_Label

Model: 4903-9356 (speaker/strobe)

Operating Voltage: Speaker: 25 or 70 VRMS
                               Strobe: 16-33 VDC

Strobe Intensity: 15 cd

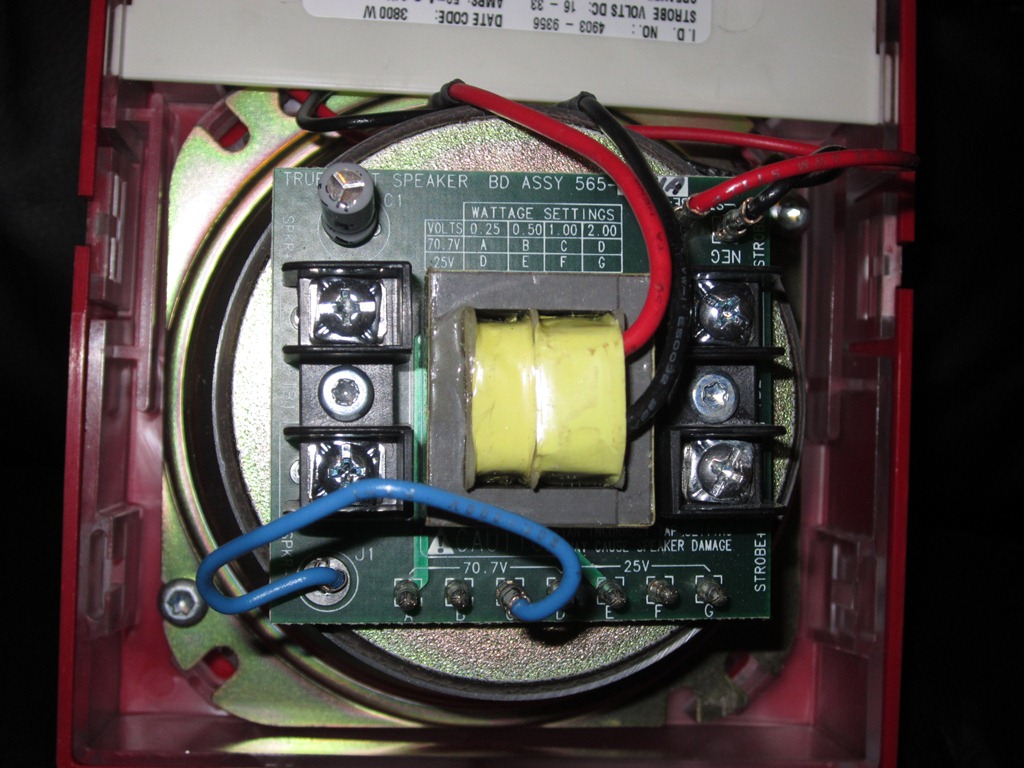

Notes: Speaker can be tapped to 1/4, 1/2, 1 or 2 watts. The higher the watt setting, the louder the volume: 1/4W is 77db, 1/2W is 80db, 1W is 83db, and 2W is 86db. Also, strobe operation can either be selected as free-run or synchronous (SmartSync) operation, using the switch seen in picture 4; on is
free-run, off is SmartSync operation.

Quantity in collection: 1

Media: Video 1, Video 2, Video 3.
