Wheelock ET-1070-LSM-24

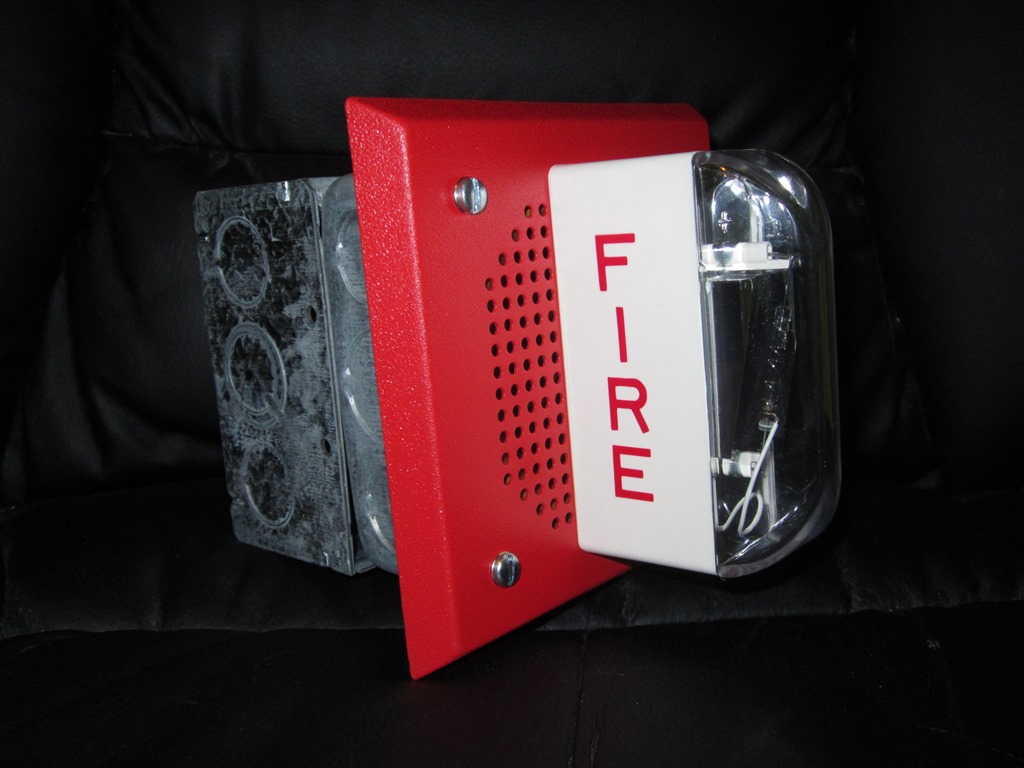

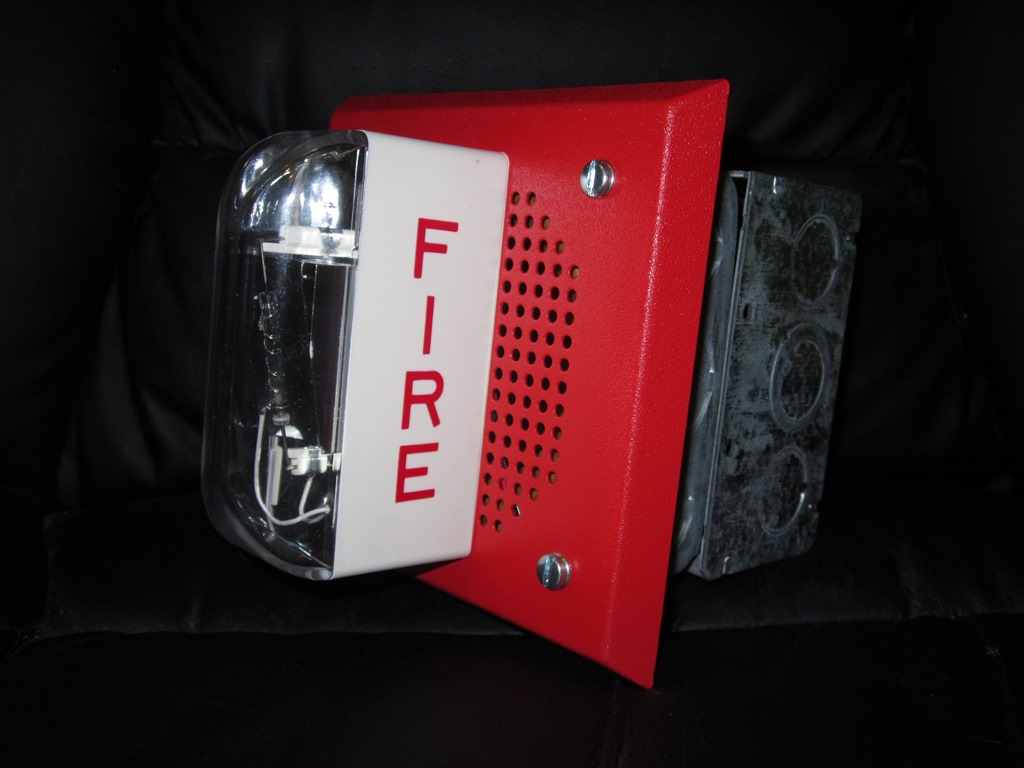

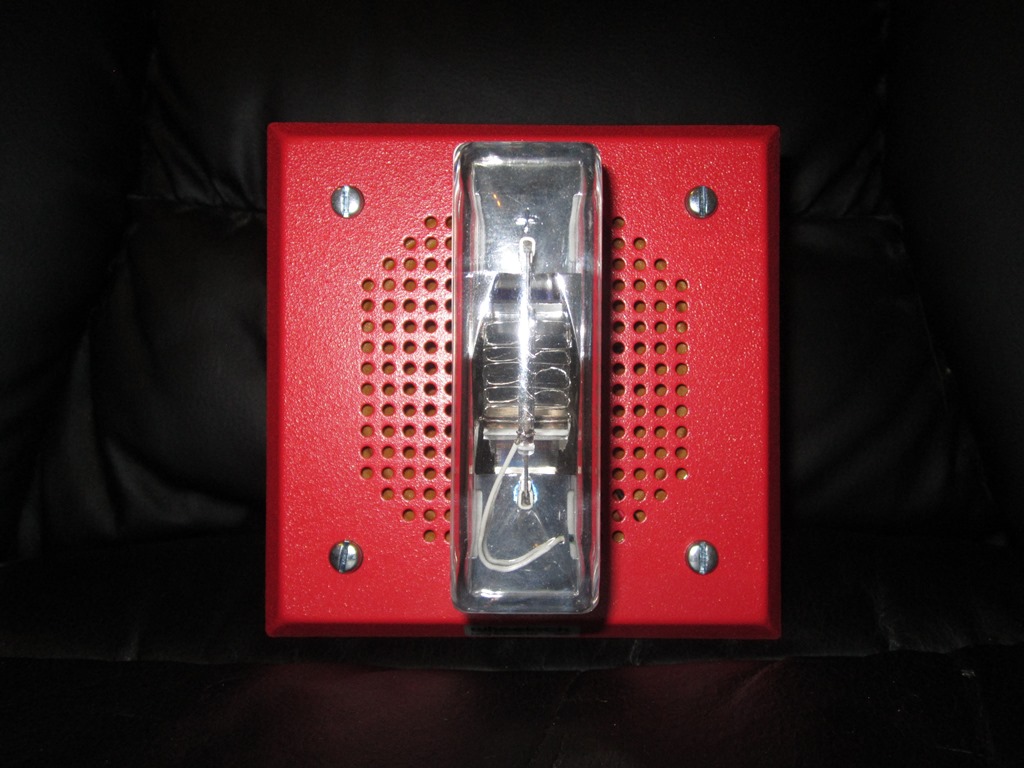

Wheelock_ET-1070-LSM-24_1 Wheelock_ET-1070-LSM-24_2 Wheelock_ET-1070-LSM-24_3

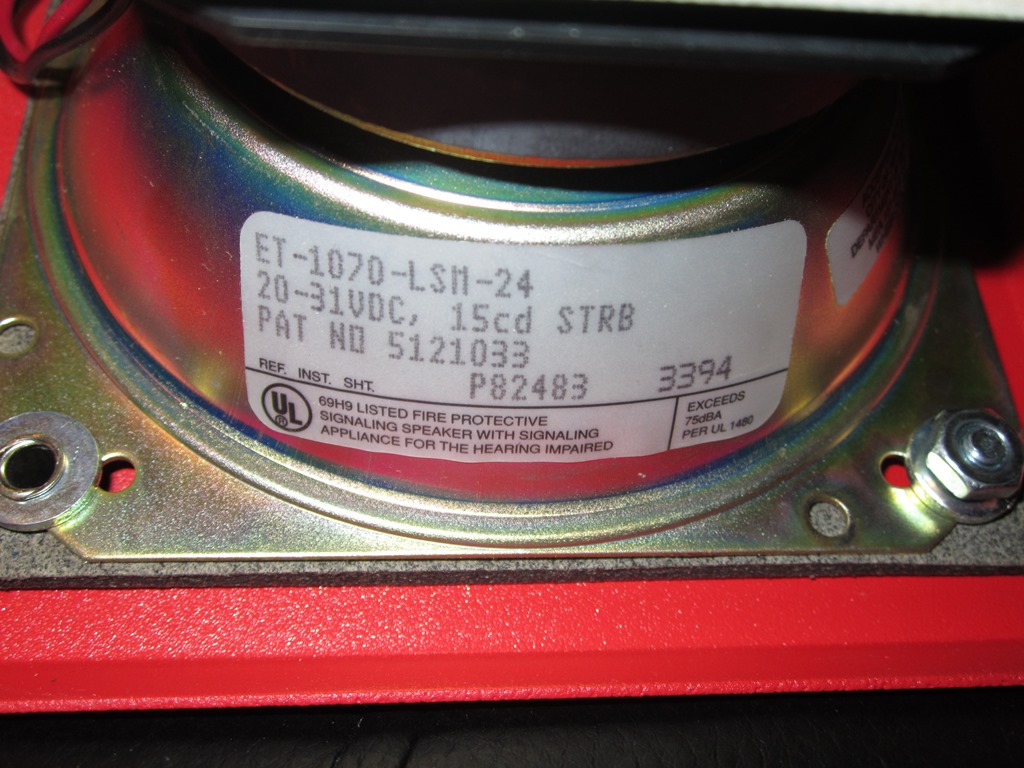

Wheelock_ET-1070-LSM-24_4 Wheelock_ET-1070-LSM-24_Label

Model: ET-1070-LSM-24

Operating Voltage: Speaker: 25 or 70.7 VRMS
                                 Strobe: 20-31 VDC

Strobe Intensity: 15/75 cd

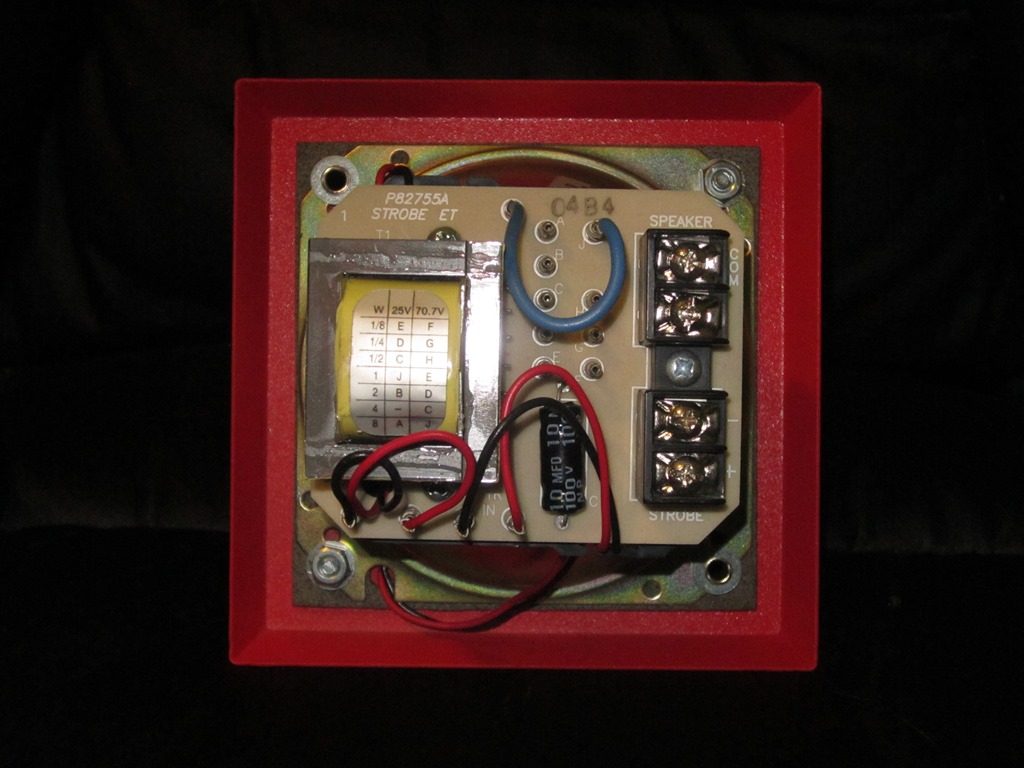

Notes: Speaker can be tapped to 1/8, 1/4, 1/2, 1, 2, 4 (70.7 VRMS only), or 8 watts. The higher the watt setting, the higher the volume on the speaker: 1/8W is 78 dBA, 1/4W is 81 dBA, 1/2W is 84 dBA, 1W is 87 dBA, 2W is 90 dBA, 4W is 93 dBA, and 8W is 96 dBA. The ET series is different from the E series of speakers because it has two higher volume options to be set to (4 or 8 watts). This series is the predecessor to the E70/ET70 series.

Quantity in collection: 1

Media: None yet...
